Turing Teacher/Administrator Guide

This guide provides information on the Turing environment (the editor, the run windows, etc.) It does not provide any information on the Turing programming language itself.

Note that there is some overlap with the Turing Teacher/Administrator Quick Start Guide.

Table of Contents

1. Making Certain You Have the Lastest Version
2. Mandatory Administration Issues
3. Changing System Preferences
4. Turing Preferences
5. Parallel Port and Turing 4
6. Missing Features from Turing 4
7. The Turing Debugger
8. Student Distribution
9. Technical Support

1. Making Certain You Have the Lastest Version

This page also lists which bugs have been fixed and when new features have been added. The page also contains a section ( http://www.holtsoft.com/turing/support/#turing4patches) where a file can be downloaded that will update most versions of Turing to the latest version.

If you are a teacher or an administrator at a school and require a complete installation file (as opposed to the publically available patch), contact Tom West at (416) 978-8363.

2. Mandatory Administration Issues

Turing 4.0 has been designed to run on either a network or installed on individual stand-alone machines. Running on a network is often preferred because of ease of administration. However, Turing, like any other application will load somewhat faster when it is launched if it is stored locally.

There are a few administration issues that must be addressed to configure Turing properly.

1. Set the start-in (often called the "working") directory properly.

   It is important that the start-in directory for Turing be set to the student's home directory. This can be done in a variety of ways, from least to most complicated.

   1. Many schools have the student's home directory mapped to a drive (often H:\). If this is the case, then set the start-in (or working) directory of the shortcut or menu item used to launch Turing to the mapped drive.

      The shortcut's working directory can be modified by changing it's start-in or working directory property. (To display the Properties dialog box, right click on the shortcut or menu item and select Properties from the pop-up menu.)


      Properties for a Shortcut under Windows 2000

      This requires changing the shortcut's properties requires write access to the shortcut. Note that commercial menu front-ends have their own way of setting the start-in directory of applications.

   2. If the "My Documents" folder is mapped to the students home directory, you can set the preferences to make Turing use the "My Documents" folder as the start-in folder. Note that this option is the preferred option for home users, where the "My Documents" folder is the home directory.

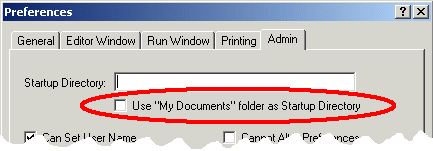

      The Use "My Documents" Folder in the Admin Pane

      To change the preference, enter Administrator mode (see Changing System Preferences below) and set the Use "My Documents" Folder checkbox in the Admin pane of the Turing Preferences (see Turing Preferences below).

   3. If each student's home directory is specified differently (i.e. there is no mapping of the home directory to a drive), then you may need to use environment variables to create a useable path. For example, if students files are stored in g:\class108\[Student Name] and there is an environment variables USERNAME that contains the student's name, then the the start-in directory for the shortcut should be set to g:\class108\%USERNAME%.

   4. Occasionally users have reported situations like the previous case, except that Windows seems unable to set the start-in directory properly using environment variables.

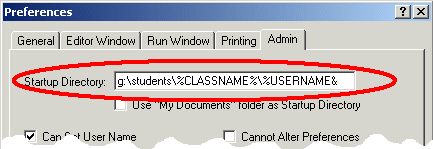

      The Startup Directory Text Field in the Admin Pane

      To set the start-in directory, enter Administrator mode (see Changing System Preferences below) and set the Startup Directory text field in the Admin pane of the Turing Preferences appropriately (see Turing Preferences below) including specifying the directory using the environment variables.

2. Set either Beginner or Regular Mode for Students.

   Turing can be set to Beginner mode, in which case only one file is open at a time. Opening up another file closes the first one. When the program is running, the Editor window minimizes. In this way, only one window is usually visible at a time. In this fashion, Beginner mode is similar to the old DOS Turing.

   In Regular mode, any number of files can be opened and each appears in its own editor window.

   In general, we suggest Beginner mode for grade 9 and 10 and Regular mode for all others. If you are using Beginner mode, we suggest that you point out to the students that they can use the Prefences to change to Regular mode when they feel comfortable with the environment.

   To change the preference, you will need to enter Administrator mode (see Changing System Preferences below) and change the Beginner Mode preference in the General pane appropriately (see Turing Preferences below).

3. Windows 95 and the Turing Net module

   If you are using Windows 95 (not Windows 98/Me/NT/2000/XP) and you wish to use the Turing Net module in order to write programs that communicate with other computers, then you may need update the Window 95 networking code.

   This can be done by running the program located at:

   [Turing directory]\support\Microsoft\W95ws2setup.exe

   This program from Microsoft patches Windows 95 networking code. It must be run on every computer running Windows 95 unless the machines boot from a server.

4. Parallel Port Usage If you are intend to use Turing to control devices attached to the parallel port (using the parallelput and parallelget, and are running under Windows NT/XP/2000, you will need to install a device driver. (Windows NT/XP/2000 do not allow direct access to the system hardware.). The device driver can be installed by running the program located at:
   [Turing directory]\support\dlportio_install.exe

   Further information can be found in Parallel Port and Turing 4.

3. Changing System Preferences

    [Turing Directory]\Support\Ini\turing_admin.ini

These preferences are the same for all users and are called the System Preferences. A second set of preferences is stored in each student's home directory in a file called turing.ini. These preferences override the central preferences and allow students to individually modify the behaviour of Turing.

When a student modifies the preferences, the turing.ini file in the student's home directory is changed. To change the System preferences (i.e. the contents of the turing_admin.ini file), Turing must be started up with the command line

    turing  -admin

This can be done by starting up a DOS window, doing a cd to the directory in which turing.exe is stored and then typing turing  -admin. The user must have write access to the directory in which the turing_admin.ini file is stored.

When Turing is launched, it will display a message box on start-up indicating that it is in Administrator mode and where the preferences will be stored.

Administration Mode Notification

Selecting Preferences from the File menu will display a tabbed dialog box of all the Turing preferences. If you are in Administrator mode, then an extra tab labeled Admin will appear with extra preferences that can only be set by the Administrator. Note that individual students cannot override the preferences that appear on the Admin pane.

Preferences in Administrator Mode

Once the Preferences have been set, the Administrator can exit Turing.

4. Turing Preferences

"General" Pane

The "General" Pane

• Beginner Mode
  When Beginner mode is set, only one file can be can be loaded into the Turing environment at a time. The Editor window is minimized every time the Run window is active and vice-versa. The debugger cannot be displayed or used. If this box is not set, then Turing is in Regular mode and multiple files can be open simultaneously. Beginner mode is recommended for students who are overwhelmed or confused by too many Turing windows (especially students in grades 9 and 10).
• One Window Mode
  This option is not available in Turing 4.0. It will be used to switch between MDI and SDI modes in a future version of the software.
• Display Full Pathnames
  The full path name and not just the file name are displayed in the Editor window's title bar and recent files submenu.
• Save Previous File as ".BAK"
  When a file is saved over top of an older file, the older file is renamed with a .BAK suffix (i.e. test.t to test.bak)
• Confirm on Quit
  When the user closes the last editor window, Turing displays a dialog box asking whether the user wishes to Quit. On systems where loading is slow (usually over a network), this can stop the users from accidentally quitting Turing.
• Skip Splash Screen
  When Turing starts up, it normally displays a "Splash" screen with the version number. The Splash screen disappears when the user clicks a button or after 3 seconds. Turning this option off causes the Splash screen not to be displayed.
• Add ".t" to File Names
  When a Save File dialog box appears and the user specifies a file name without a file suffix, Turing adds ".t". This can be removed by the user.
• Convert Leading Spaces into Tabs
  When Turing saves a file, it normally converts groups of leading spaces into TAB characters, saving disk space. The number of spaces per tab is specified by the Spaces per Tab text field. If this check box is not selected, then the spaces are not converted.
• Don't Save Recent Files Menu
  Normally Turing lists the last several files opened. However, if students do not have individual accounts, then this feature may not be useful and can be turned off.
• Find Uses Selected Text
  By default, Turing uses the Windows behaviour that when a Find command is given and there is selected text, the selected text is copied to the Find dialog box. If you don't like this behaviour, then unsetting this option will stop this behaviour. If it is not set, then an additional menu item is placed in the Search menu that finds the next occurance of the currently selected text.
• Start in Last Active Directory
  If students are writing large projects in many subdirectories, then this option can be enabled to automatically start Turing in the last directory in which a file was loaded or saved. The Turing preferences file is still stored in the student's home directory.
• Spaces per Tab
  This specifies the number of spaces that a Tab is converted to and from. When Turing reads a text file into the editor, all tabs are converted on to spaces. If you created the Turing file on an editor where Tabs are a different number of spaces, then change this value appropriately.
• Indent Size
  When Tab is pressed in the Turing editor, it is converted into spaces. The number in the Indent Size text field determines how many spaces the Tab key is converted to. Note the Spaces per Tab is used when Turing reads/writes files. The Indent Size field is used when Turing responds to the Tab key.
• File Association
  Microsoft Windows has the ability to associate files with a particular suffix with specific programs. The Turing environment can be associated with the following file suffixes: .t, .tur, .dem, .ti and .tu. To associate these file suffixes with Turing, click the Associate ".t" files with Turing button. To reset the file associations back to what they were before, click the Reset ".t" File Association.

"Editor Window" Pane

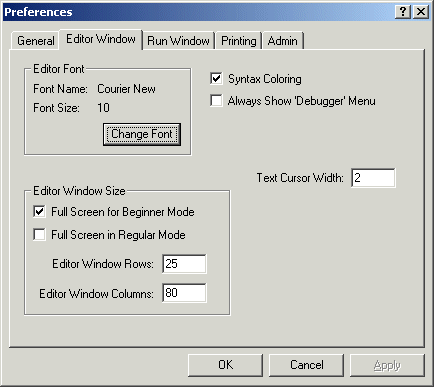

The "Editor Window" Pane

• Editor Font
  You can change the font size and typeface used in the editor window. If you change the typeface, you must choose a monospaced font where bold and non-bold letters are the same size. Many monospaced fonts have different sizes for bold and non-bold letters.
• Full Screen for Beginner Mode
  If in beginner mode, editor windows are automatically in full screen mode. You can change this behaviour buy unsetting this checkbox.
• Full Screen for Regular Mode
  Editor windows are normally 25x80 columns (or the size specified by the Editor Window Rows/Columns text fields). If this checkbox is set, editor windows are automatically maximized to fill the screen. This option is suggested for systems with 640x480 screen resolution. Users can change the window size by clicking the full screen/normal window button in the window's title bar.
• Editor Window Rows/Columns
  These text fields control the size of editor windows when first created.
• Syntax Coloring
  When selected, parts of Turing programs appear in different colors: comments appear in green, strings in red, keywords in bold face, predefined identifiers in black, and user identifiers in blue.
• Always Show 'Debugger' Menu
  In the interest of keeping the interface as simple as possible, and because most students do not use the debugging features, Turing does not display the Debugger menu by default. Instead, the user selects Show Debugger Menu from the Run menu. Setting this checkbox causes the Debugger menu to always be displayed.
• Text Cursor Width
  By default, the cursor (correctly called the caret) is 2 pixels wide, allowing it to be seen easily in the Editor window. However, some users prefer the caret to be 1 pixel wide and some prefer the caret to overlay an entire character (in a similar manner to DOS editors). Legal values are 1 (which represent a 1 pixel thick caret), 2 (which represent a 2 pixel thick caret), and 3 (which represents a text cursor that covers the entire character.

"Run Window" Pane

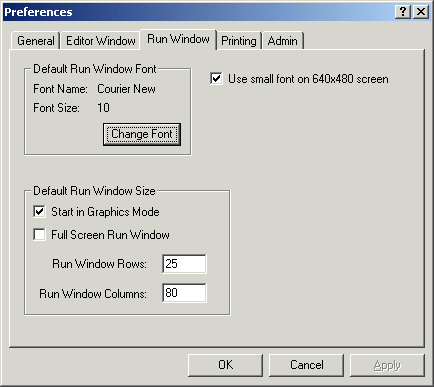

The "Run Window" Pane

• Default Run Window Font
  You can change the font size and typeface used in the Turing run window. If you change the typeface, you must choose a monospaced font. Note that changing the size of the run window font may cause odd output in Turing programs that were written assuming a particular character size.
• Start in Graphics Mode
  This makes the initial run window a graphics window. The user can use graphics without the setscreen ("graphics") command in the program. Output that scrolls off the top of the screen is lost. In text mode, graphics are not allowed, but all text output is kept and can be scrolled, saved, and printed at any time.
• Full Screen Run Window
  This causes the default run window to occupy the entire screen.
• Run Window Rows/Columns
  This sets the size of the default run window. Changing the size may cause programs that assume a 25x80 window to malfunction.
• Use Small Fonts on 640x480 Screen
  A standard 25x80 window does not quite fit on a 640x480 screen with a standard size task bar. As a result, without this option, the default graphics mode run window appears with scroll bars. This option causes Turing to use a slightly smaller font for 640x480 run windows so the entire window fits on the screen. This option may cause odd output in Turing programs that were written assuming a particular character size.

"Printing" Pane

The "Printing" Pane

Note that the options marked with an asterisk (*) can be set in the printing dialog.

• Printing Font/Printing Header Font
  You can change the font size and typeface used in printing. If you change the typeface, you must choose a monospaced font where bold and non-bold letters are the same size. Many monospaced fonts have different sizes for bold and non-bold letters.
• Bold Keywords/Italicize Identifiers *
  This allows for "syntax coloring" of printouts. Keywords can be placed in bold and identifiers italicized.
• Print Page Header
  On some systems, a header page is automatically printed out and there is little reason for a page header. Unsetting this checkbox will cause printouts not to have any header on the printed programs.
• User Name in Header
  Normally the user name is displayed in the header. However, on some systems the user name is non-descriptive or non-existent. This allows you to disable the printing of the user name on such systems.
• Two-Up Printing *
  This is a paper saving measure. Text is printed in landscape mode with two "pages" per piece of paper. This means that listings use half the amount of paper. Of course, the font is much smaller.
• Line Numbers *
  This prints out line numbers in front of each line of the program. This is useful if you are printing out a listing to hand out to the class.
• Border Around Text
  Some users like to have a thin border printed around the text for ease of determining the margins, etc. Setting this checkbox causes Turing to display a hairline border around program printouts.
• Margins
  If you need to change the margins on printouts (for example, to facilitate the insertion of program listings into 3-ring binders), then you can do by changing the values in the text fields. Margins are expressed in inches.
• User Name
  On systems where the user name is non-descriptive or non-existent, the user can enter a name that will appear on the printout allowing it to be identified. If students are choosing inappropriate user names, this preference can be disabled in the Admin tab preference dialog.

"Admin" Pane

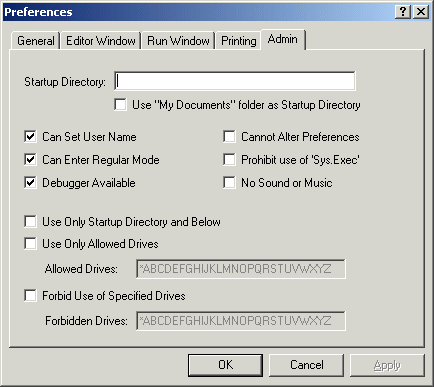

The "Admin" Pane

Note, the Admin pane is only available in administrator mode. Students starting Turing will not have access to this dialog box.

• Startup Directory
  Users will start in the directory listed in this text field. If left blank, Turing will use the working directory of the shortcut used to start Turing. If no working directory for the shortcut is specified, the directory where Turing is installed is used. Environment variables prefixed and suffixed with % signs can be used here (example: g:\students\%username%). Note that in most cases, this text field should be blank.
• Use "My Documents" folder
  The "My Documents" folder can be used as the startup directory instead of the contents of the Startup Directory text field. This is most commonly used in single user systems.
• Can Set User Name
  Allows the user to specify the user name to appear on top of printouts. This checkbox can be unset if students are choosing inappropriate user names.
• Can Enter Regular Mode
  Allows the user to turn off the beginner mode preference. This checkbox can be unset if it is desirable to have all students working in beginner mode.
• Debugger Available
  This checkbox can be unset in order to stop students getting access to the debugger.
• Cannot Alter Preferences
  When set, this stops students from accessing the Preferences dialog. It also stops Turing from reading the student's turing.ini file. This can be set when it is important to have a uniform set of preferences on all student machines, or when there is no log-on procedure and students are sharing machines.
• Prohibit use of 'Sys.Exec'
  When set, the Sys.Exec and system procedures do nothing. This can be set if there is a system security concern about students starting arbitrary programs.
• No Sound or Music
  When set, the Turing sound and music commands do nothing.
• Use only Startup Directory and Below
  CAUTION! This option only provides rudimentary security and is to be used only on systems where the operating system cannot provide proper security. This option will not allow students to save or load to any directory other that their startup directory or directories created in the startup directory. This option does not stop students from browsing the names of files in other directories, only from loading or saving files in them.
• Use Only Allowed Drives
  CAUTION! This option only provides rudimentary security and is to be used only on systems where the operating system cannot provide proper security. This option allows students to load files only from the set of drives specified in the text field. The '*' represents network drives.
• Forbid Use of Certain Drives
  CAUTION! This option only provides rudimentary security and is to be used only on systems where the operating system cannot provide proper security. This option prevents students from loading files from the set of drives specified in the text field. The '*' represents network drives.

5. Using the Parallel Ports in Turing 4

Under Windows 95/98 and Me, the operating system allows direct access to the parallel port. Under Windows NT, 2000 and XP, access to the parallel port is restricted by the operating system. In order to access the port, under Windows NT, 2000 and XP, it is necessary to install a device driver on each machine that will be accessing the parallel port. The needed device driver installer is located at:

where [Turing directory] is the directory in which Turing was installed. Executing this program will install the device driver in the Windows System directory of the machine upon which it is executed.

Lastly, before accessing the parallel port, check that the parallel port is in normal mode and not in bi-directional, PS/2, EPP or ECP mode. You can determine which mode the parallel port is in using the Device Manager. In the list of devices in the Device Manager window, double click Ports (COM and LPT), and then the LPT (or PRN) port. This displays a property sheet about the parallel port. Take a look at what it says about it. If it is in a non-original mode (i.e. mentions bi-directional, PS/2, EPP or ECP mode), then you will probably need to adjust the systems BIOS settings.

(Under Windows 2000 the Device Manager can be displayed by selecting the System Control Panel from Settings in the Start menu. Select the Hardware tab and then click the Device Manager button.)

If the setting for the parallel port needs to be changed, restart the machine, and press the appropriate key to enter the BIOS Set Up Program (the key varies between machines, but is usually noted on the screen). Often the parallel port settings are found in Advanced Settings of the program. The parallel port should be set to Normal, Standard, AT or Unidirectional mode. (All four names are different descriptions of the same mode.) Once this is done and the new settings are saved, then start the machine into Windows. Once in Windows, select Shut Down and turn the machine completely off. Once the machine is off, wait at least 10 seconds in the powered-off state. Then restart the machine. (While shutting down the machine should not be necessary, we have had several cases where the change only took when the machine had been powered-down and restarted.)

6. Missing Features from Turing 4

• View Variables
• The Sprite module

To determine the current release of Turing, check the Turing web site at

7. The Turing Debugger

Always Show 'Debugger' Menu in the Editor Window Pane

If you wish students to have a more regular exposure to the Debugger, you can set a System preference to cause Turing to always display the Debugger menu. To set the this preference, enter Administrator mode (see Changing System Preferences below) and set the Always Show 'Debugger' Menu checkbox in the Editor Window pane of the Turing Preferences.

8. Student Distribution of Turing 4.0

If your school does not have such a license, students can purchase the software for home use by printing and then mailing an order form found http://www.holtsoft.com/studentbuy. This order form can also be used to allow interested students to purchase textbooks.

If your school has purchased a redistribution license (almost 200 schools have done so), then you may redistribute the Turing software to your students. You can either burn copies of the CD to distribute to students or place the Turing installer file onto your school Internet server and give your students the URL.

If you place this file on your school internet server, you must not make any links from your web pages to the software.

This will prevent other users of the web from downloading your software. If you place links from your school's web site, then at some point a web search engine will find the software and post its location to the internet at large, allowing for large scale piracy (and a very overloaded school web server). If there are no links to the software, then only those who have been told the exact URL will be able to download the software.

Note that if you are copying a number of different programs onto a single CD for redistribution, you may rename the Turing installer program to something more descriptive.

Permanent student redistribution licenses can be purchased for $500-$750 for most schools. If you are interested in purchasing a student redistribution license, contact Chris Stephenson at (416) 978-6476 or chris@hsa.on.ca

9. Technical Support
